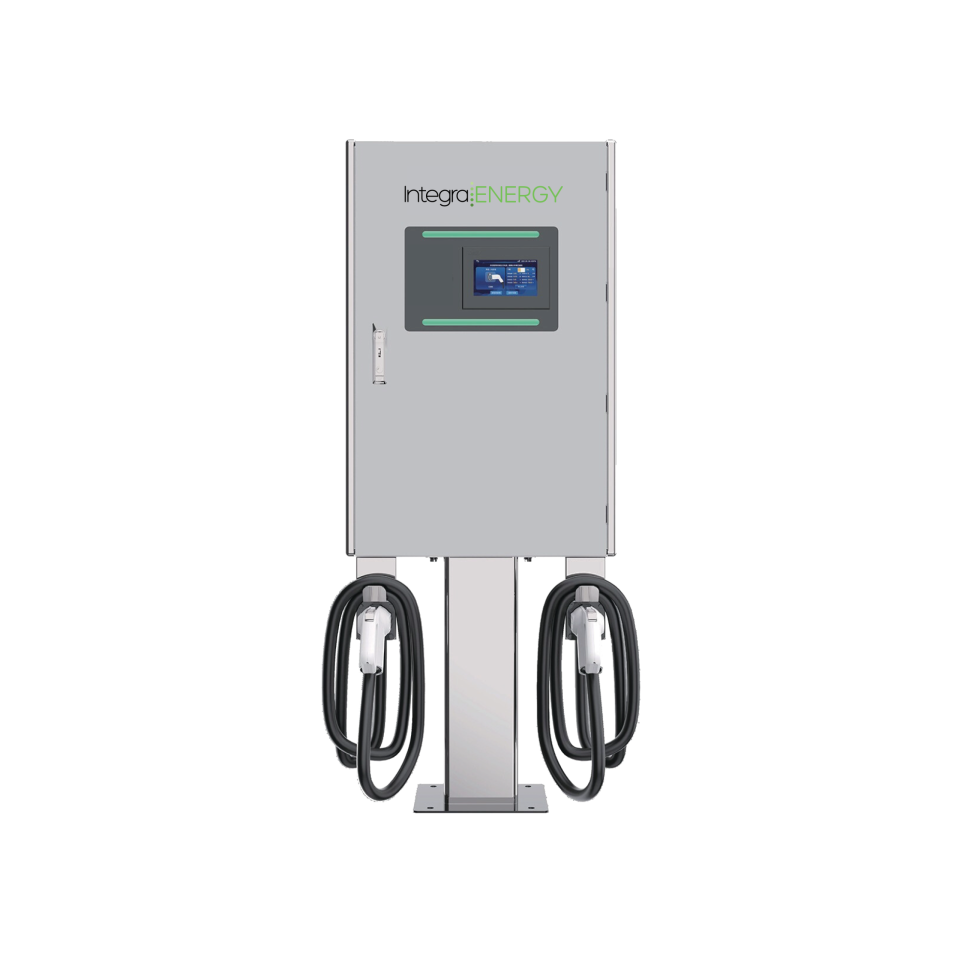

IEV Level 3 – DC Fast Series, 60 kW – CCS1 / NACS

Reliable 60 kW DC fast charging — the IEV/D060/SN25/EG/G delivers up to 200 A through CCS1 or NACS connectors, features a 7-inch LCD interface, RFID and QR user authentication, and robust UL-listed safety protections for commercial and fleet sites.

  • Power Output

    Up to 60kW (DC Fast Charging)

  • Connectivity

    OCPP 1.6 JSON, Load Management via OCPP

  • Plug & Cable

    Dual 200A cables: CCS1 + NACS, 25 ft each

Get a Quote

What is a Level 3 Charger?

Also known as DC Fast Chargers, Level 3 chargers are the fastest way to charge an electric vehicle. They’re typically found at public stations and are designed for short stops—providing an 80% charge in as little as 30 minutes for most EVs.

Fast, Reliable Charging for Quick Stops

integraenergy charger

Ultra-Fast Charging

Delivers up to 60kW of power—ideal for highway stops, fleets, and high-traffic public areas.

Minimize Downtime

Charge most EVs to 80% in 30 minutes or less, keeping vehicles moving and drivers on schedule.

Future-Proof Infrastructure

Supports both CCS1 and NACS connectors, OCPP integration, and load management for scalable networks.

General Specifications
Model NumberIEV/D060/SN25/EG/G
Maximum Output PowerDC 60 kW
DC Charging Connector200 A CCS1 25 ft, 200 A NACS 25 ft
Display7-inch LCD
User AuthenticationRFID, QR Code
Electrical & Performance
Max. Input Current3Φ92A
Voltage Rating3Φ480 Vac (+10%, −15%)
Output Voltage Range150 Vdc ~ 1000 Vdc
Maximum Output Current200 A
Voltage Accuracy±0.5%
Current Accuracy±1%
Power Factor> 0.98
Efficiency> 95%, at optimize V/I point
Simultaneously Output Mode0%, 50%, 100%
Standby Power< 35 W
Electrical IsolationBetween Input and Output
CoolingFan Cooling
Smart Features
Backend SupportOCPP 1.6 JSON
Load ManagementVia OCPP 1.6 JSON
Safety, Protections & Compliance
SafetyUL2202, UL2231
FCC ComplianceYes
Input ProtectionOVP, OCP, OPP, UVP, RCD, SPD
Output ProtectionOCP, OVP, LVP, OTP, IMD
Internal ProtectionOTP, AC/DC contactor detection
Ingress ProtectionNEMA 3R
Anti-VandalismIK10, not include LCD & RFID
Mechanical & Environmental
Dimensions (H × W × D)25.59 × 5.91 × 39.37 inch
Weight265 lbs
Operation Temperature−22°F to 122°F
Storage Temperature−40°F to 158°F
Relative Humidity5% ~ 95% RH, non-condensing
