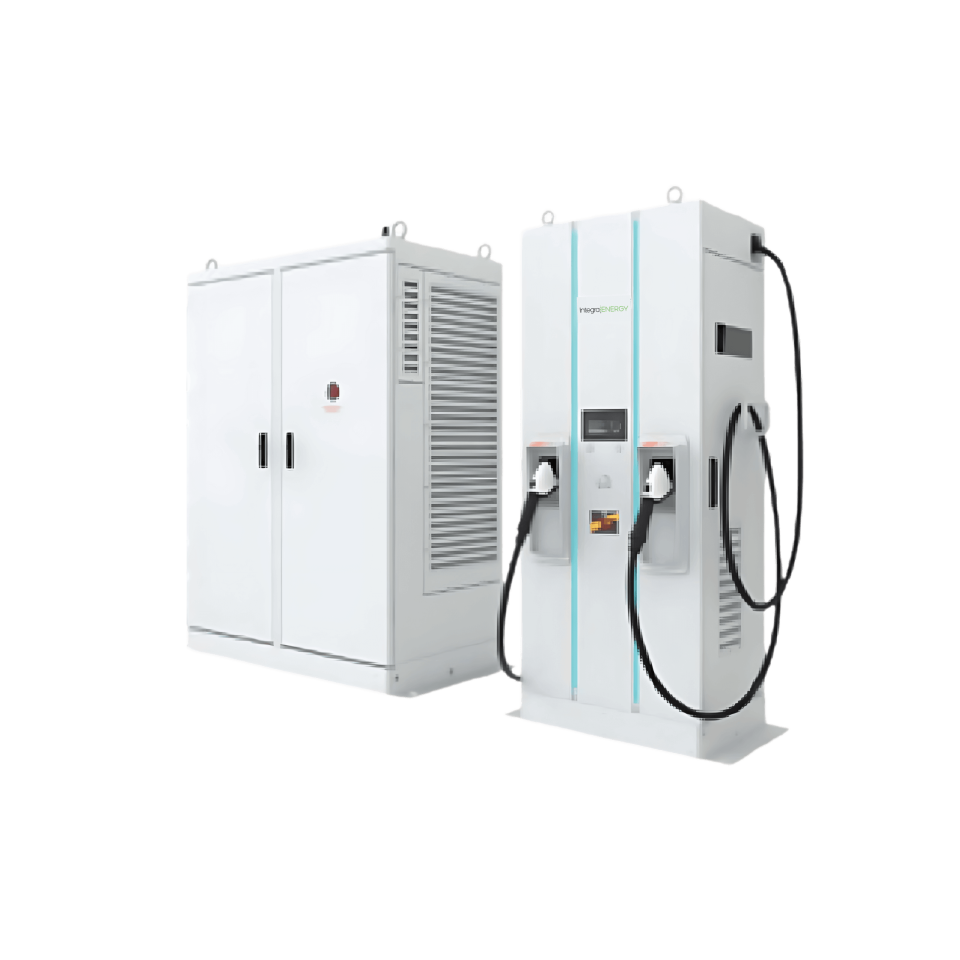

IEV Level 3 – DC Fast Series, 360 kW, Single Dispenser

High-power 360 kW DC fast charging — the IEV/D360/SS15/EWG/W delivers up to 300 A through a single 15 ft CCS1 dispenser, featuring OCPP 1.6 JSON connectivity, ISO 15118 compliance, and UL-certified protection for fleet, highway, and commercial applications.

  • Power Output

    Up to 360kW (DC Fast Charging)

  • Connectivity

    OCPP 1.6 JSON, Load Management via OCPP

  • Plug & Cable

    1 Dispenser – Dual 300 A CCS1 15 ft

Get a Quote

What is a Level 3 Charger?

Also known as DC Fast Chargers, Level 3 chargers are the fastest way to charge an electric vehicle. They’re typically found at public stations and are designed for short stops—providing an 80% charge in as little as 30 minutes for most EVs.

Fast, Reliable Charging for Quick Stops

integraenergy charger

Ultra-Fast Charging

Delivers up to 360kW of power—ideal for highway stops, fleets, and high-traffic public areas.

Minimize Downtime

Charge most EVs to 80% in 30 minutes or less, keeping vehicles moving and drivers on schedule.

Future-Proof Infrastructure

We have options that support both CCS1 and NACS connectors, OCPP integration, and load management for scalable networks.

General Specifications
Model Number IEV/D360/SS15/EWG/W
Configuration 360 kW Power Cabinet with 1 Dispenser of Dual 300 A CCS1
Maximum Output Power DC 360 kW
Display 7-inch LCD
User Authentication RFID, QR Code, Mobile App
Electrical & Performance
Max. Input Current3Ø 549 A
Voltage Rating3Ø 480 Vac (+10%, –15%)
Voltage Accuracy±2%
Current Accuracy±2%
Power Factor> 0.99
Efficiency> 94% (at optimum V/I point)
Output Voltage RangeCCS1 150 Vdc ~ 950 Vdc
Maximum Output Current300 A @ 950 Vdc
Simultaneous Output Mode0%, 50%, 100%
Standby Power< 100 W
Connectivity & Smart Features
Load ManagementVia OCPP 1.6 JSON
Backend SupportOCPP 1.6 JSON
ISO 15118 CompliantYes
Protection & Safety
Input ProtectionOVP, OCP, OPP, UVP, RCD, SPD
Output ProtectionOCP, OVP, UVP, OTP, IMD
Internal ProtectionOTP, AC/DC contactor detection, Fuse detection
Safety StandardsUL2202, UL2231
FCC ComplianceYes
Anti-VandalismIK10 (excluding LCD & RFID)
Ingress ProtectionIP55 / NEMA 3R
Mechanical & Environmental
Dimensions (W×D×H)Power Cabinet 55.12 × 31.50 × 74.80 in
WeightPower Cabinet 2,643 lbs / Dispenser 660 lbs
Operating Temperature–22 °F to 122 °F
Storage Temperature–40 °F to 158 °F
Relative Humidity5%–95% RH (non-condensing)
CoolingFan Cooling
Cable Management Compatibility
IEV/CM15/06015 ft cable for IEV Level 3 DC Fast Charger 60 kW
IEV/CM15/120/18015 ft cable for IEV Level 3 DC Fast Charger 120 / 180 kW
