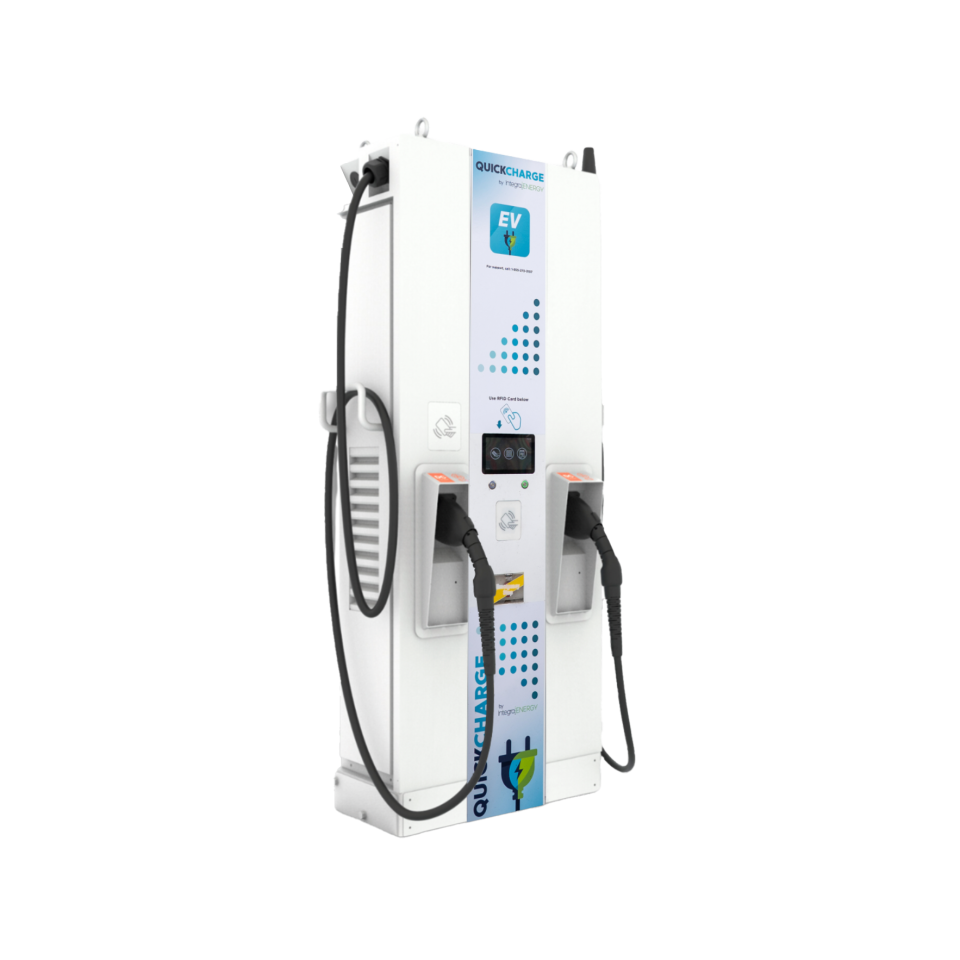

IEV Level 3 – DC Fast Series, 120 kW

High-power 120 kW DC fast charging — the IEV/D120/SS15/EWG/W delivers up to 2×200 A through dual CCS1 connectors, features integrated cable management, smart OCPP 1.6 JSON connectivity, and robust UL-certified safety protections for high-traffic commercial and fleet sites.

  • Power Output

    Up to 120kW (DC Fast Charging)

  • Connectivity

    OCPP 1.6 JSON, Load Management via OCPP

  • Plug & Cable

    Dual 200A CCS1, 15 ft each

Get a Quote

What is a Level 3 Charger?

Also known as DC Fast Chargers, Level 3 chargers are the fastest way to charge an electric vehicle. They’re typically found at public stations and are designed for short stops—providing an 80% charge in as little as 30 minutes for most EVs.

Fast, Reliable Charging for Quick Stops

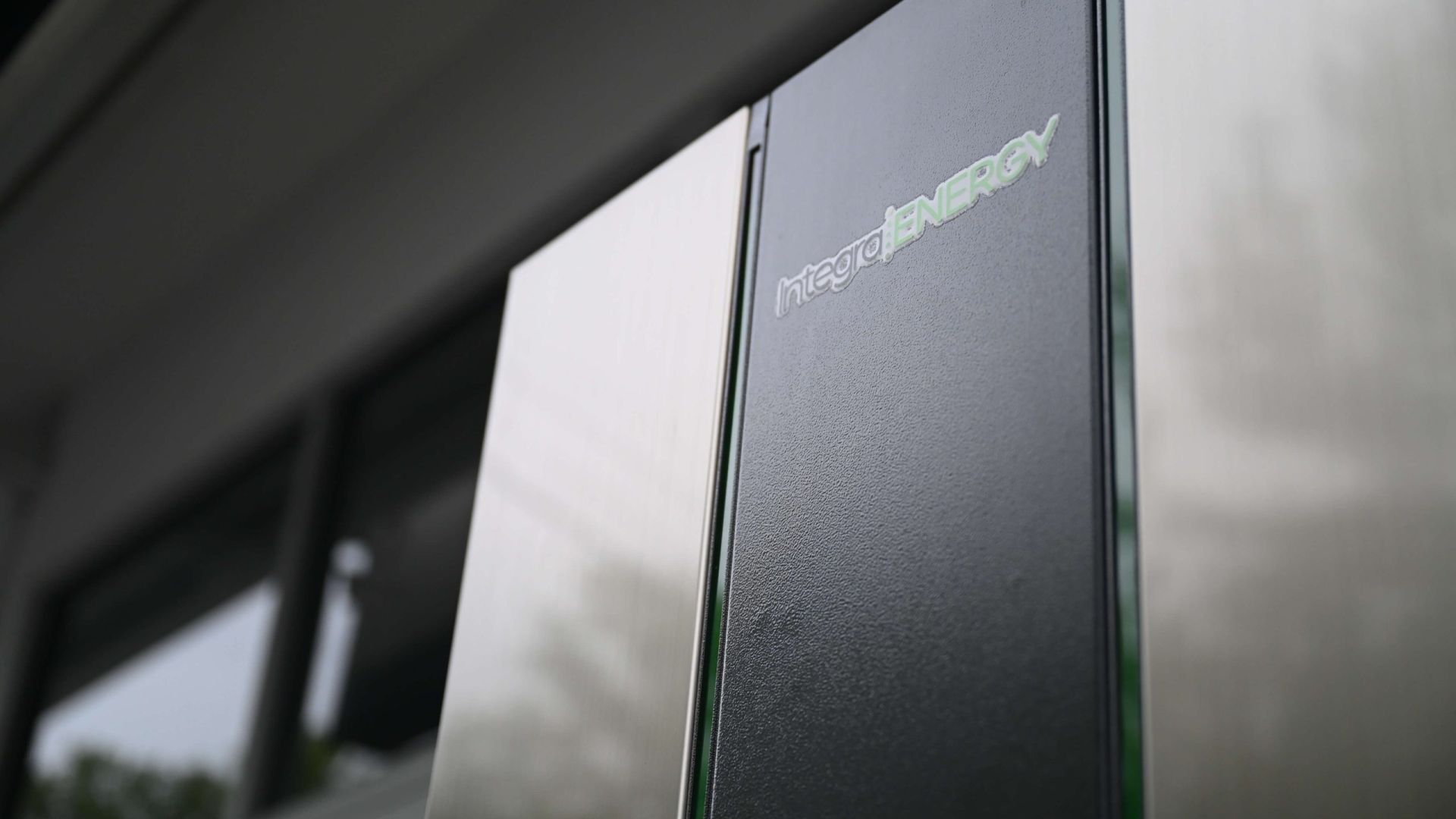

integraenergy charger

Ultra-Fast Charging

Delivers up to 120kW of power—ideal for highway stops, fleets, and high-traffic public areas.

Minimize Downtime

Charge most EVs to 80% in 30 minutes or less, keeping vehicles moving and drivers on schedule.

Future-Proof Infrastructure

We have options that support both CCS1 and NACS connectors, OCPP integration, and load management for scalable networks.

General Specifications
Model NumberIEV/D120/SS15/EWG/W
Maximum Output PowerDC 120 kW
DC Charging ConnectorDual 200 A CCS1, 15 ft (NACS optional)
Display7-inch LCD
User AuthenticationRFID, QR Code
Cable ManagementIntegrated cable management system included
Electrical & Performance
Max. Input Current3Φ 184 A
Voltage Rating3Φ 480 Vac (+10 %, −15 %)
Output Voltage Range150 Vdc ~ 1000 Vdc
Maximum Output Current2 × 200 A
Voltage Accuracy±0.5 %
Current Accuracy±1 %
Power Factor> 0.98
Efficiency> 95 %, at optimize V/I point
Simultaneous Output Mode0 %, 50 %, 100 %
Standby Power< 35 W
Electrical IsolationBetween Input and Output
CoolingFan Cooling
Smart Features
Backend SupportOCPP 1.6 JSON
Load ManagementDynamic load management via OCPP 1.6 JSON
Safety, Protections & Compliance
SafetyUL2202, UL2231
FCC ComplianceYes
Input ProtectionOVP, OCP, OPP, UVP, RCD, SPD
Output ProtectionOCP, OVP, LVP, OTP, IMD
Internal ProtectionOTP, AC/DC contactor detection
Ingress ProtectionNEMA 3R
Anti-VandalismIK10, not including LCD & RFID
Mechanical & Environmental
Dimensions (H × W × D)27.56 × 7.87 × 39.37 in
Weight397 lbs
Operation Temperature−22 °F to 122 °F
Storage Temperature−40 °F to 158 °F
Relative Humidity5 % ~ 95 % RH, non-condensing
