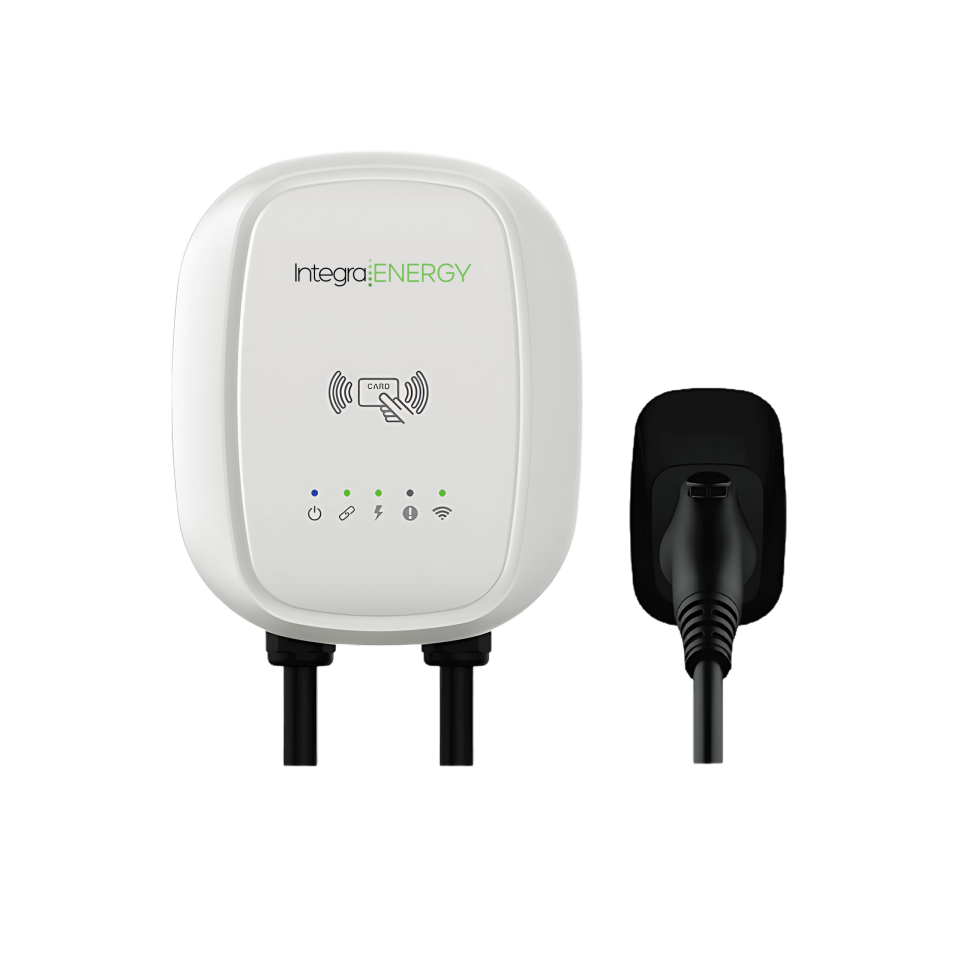

IEV Level 2 – Residential Series

Smart and compact — the IEV/A48/J18 delivers up to 48A of Level 2 charging with built-in WiFi, BLE 5.0, and LAN connectivity. Designed for simple home installation, it offers optional cable management, RFID access, and integrated smart app controls for everyday reliability.

  • Power Output

    Up to 48A / 11.5 kW

  • Connectivity

    WiFi, BLE 5.0, LAN

  • Plug & Cable

    Type 1 SAE J1772 (model IEV/A48/J18) or NACS SAE J1772 (model IEV/A48/N18) with 18 ft cable

Get a Quote

What is a Level 2 Charger?

A Level 2 charger is the most common type of EV charger for everyday use. It charges faster than a standard wall outlet and is ideal for home, work, and public locations where vehicles are parked for longer periods.

Everyday EV Charging Made Easy

integraenergy charger

No Costly Upgrades

Delivers consistent performance with up to 48 amps of power—without requiring expensive upgrades to property infrastructure.

Great for Daily Parking

Ideal for workplaces, residences, and overnight charging—where drivers spend hours, not minutes.

Ready to Grow

Designed for easy installation and future expansion.

General Specifications
Model NumbersIEV/A48/J18, IEV/A48/N18
Input Current48 A
Input Voltage (Single Phase)208–240 V / 60 Hz
Network ConnectivityLAN + WiFi + BLE 5.0
RFID + QR CodeIncluded
Plug TypeSAE J1772 Type 1
Number of PortsSingle
Charging Cable Length18 ft
Cable ManagementOptional
Electrical & Performance
Max Output Power48 A / 11.5 kW
AC Input ConnectionL/N/GND
Power ConfigurationBuilt-in
Metering Accuracy±1%
Energy Star CertifiedYes
Power Factor> 0.99
Connectivity & Smart Features
Network ConnectivityLAN, WiFi, BLE 5.0
Local Load ManagementIncluded
OTA TechnologyIncluded
Credit Card CapabilityOptional
OCPP 2.0N/A
Open ADR 2.0b CompliantN/A
CTEPN/A
Protection & Safety
Input ProtectionUVP, OVP, RCD, SPD
Output ProtectionOCP, Control Pilot Fault
Internal ProtectionOTP, MCU Function Fault
SafetyUL2594
FCC CompliantYes
IP ProtectionIP54 / NEMA 3
Tamper ResistanceIK10, except RFID
Mechanical & Environmental
Dimensions (H × W × D)12.30 × 10.20 × 4.10 in
Weight22 lbs (with plug)
Operating Temperature–22 °F to 122 °F
HumidityMax 85%
