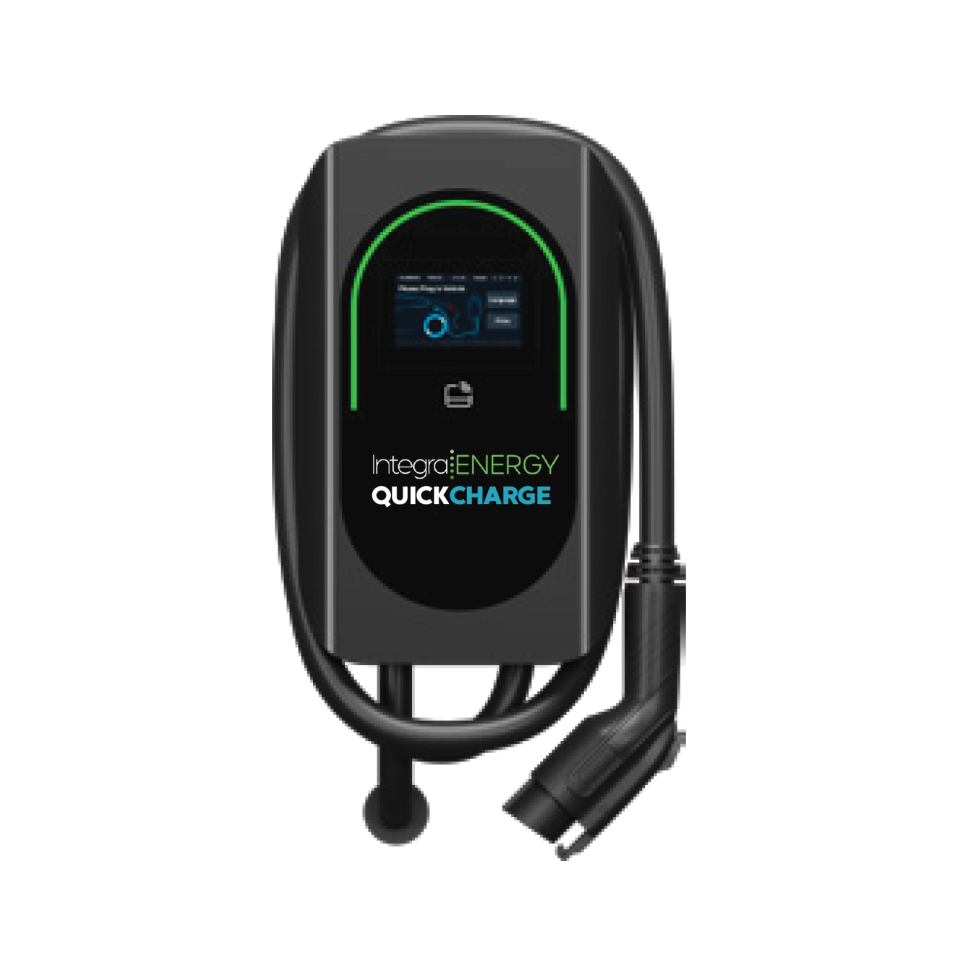

IEV Level 2 – 48A Series, Generation 2

Smart, rugged, and feature-packed — the IEV-48SEL-G2 delivers up to 48A of Level 2 charging with Ethernet, WiFi, 4G, and Bluetooth connectivity, ISO 15118 Plug-and-Charge support, and robust safety protections for commercial and multifamily installations.

  • Power Output

    Up to 48A / 11.5 kW

  • Connectivity

    WiFi, 4G, Ethernet, BT 5.2

  • Plug & Cable

    SAE J1772 or SAE J3400 NACS with 18 ft cable (25 ft optional)

Get a Quote

What is a Level 2 Charger?

A Level 2 charger is the most common type of EV charger for everyday use. It charges faster than a standard wall outlet and is ideal for home, work, and public locations where vehicles are parked for longer periods.

Everyday EV Charging Made Easy

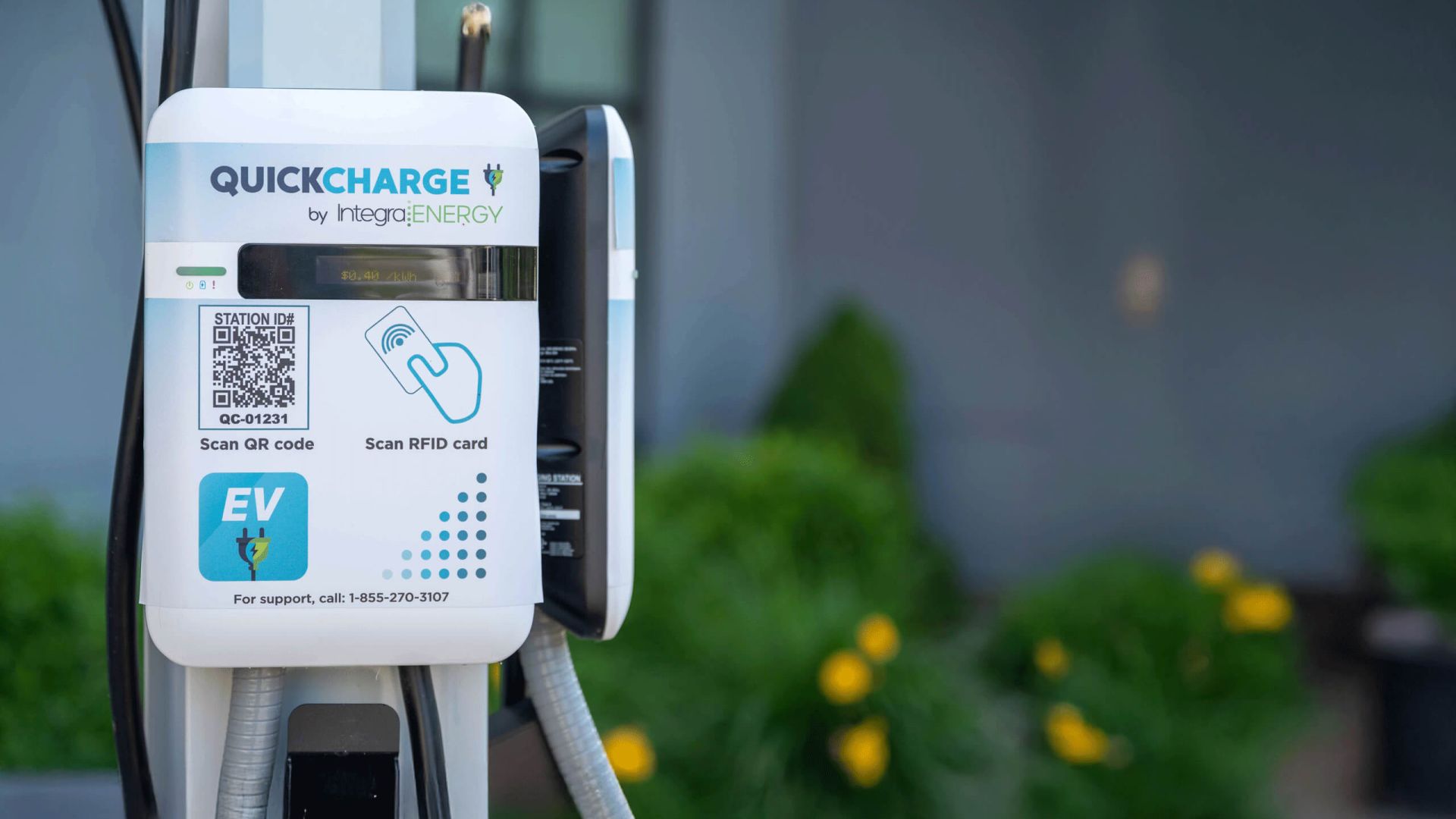

integraenergy charger

No Costly Upgrades

Delivers consistent performance with up to 48 amps of power—without requiring expensive upgrades to property infrastructure.

Great for Daily Parking

Ideal for workplaces, residences, and overnight charging—where drivers spend hours, not minutes.

Ready to Grow

Designed for easy installation and future expansion.

General Specifications
Model NumberIEV-48SEL-G2
Plug TypeSAE J1772 Type 1 or SAE J3400 (NACS)
Number of PortsSingle
Charging Cable Length18 ft (25 ft optional)
Cable ManagementOptional
Display5-inch LCD
Electrical & Performance
Input Voltage208–240V AC, Single-Phase
Input Current48A (Selectable 48/40/32/16A)
Max Output Power11.5 kW
Output Voltage Range187–264V AC
Maximum Output Current48A
Voltage & Current Accuracy±1%
Power Factor0.99
Efficiency> 96%
CoolingPassive
Standby Power< 5W
Electrical IsolationInput-to-Output Isolation
Dedicated Breaker60A / 100A
Smart Features
Network ConnectivityEthernet, Wi-Fi, 4G Cellular
User AuthenticationRFID, QR Code
ISO 15118 Plug & ChargeYes / Optional
OCPP Support2.0
OpenADR 2.0bYes
Remote Load ManagementVia OCPP 2.0 JSON
OTA UpdatesIncluded
Mechanical & Environmental
Dimensions15.83 x 4.64 x 9.61 in
Weight19.8 lbs
Enclosure RatingIP65 (charger), IP54 (cable), NEMA 3
Tamper ResistanceIK08 (except LCD & RFID)
Operating Temperature−40°F to +131°F
Storage Temperature−40°F to +185°F
HumidityMax 95% RH, non-condensing
Altitude< 6,561 ft (2000 m)
Safety CertificationsUL2594, UL2231-1/-2, FCC Compliant, Energy Star
ProtectionUVP, OVP, RCD, SPD, OTP, OCP, Control Pilot Fault
