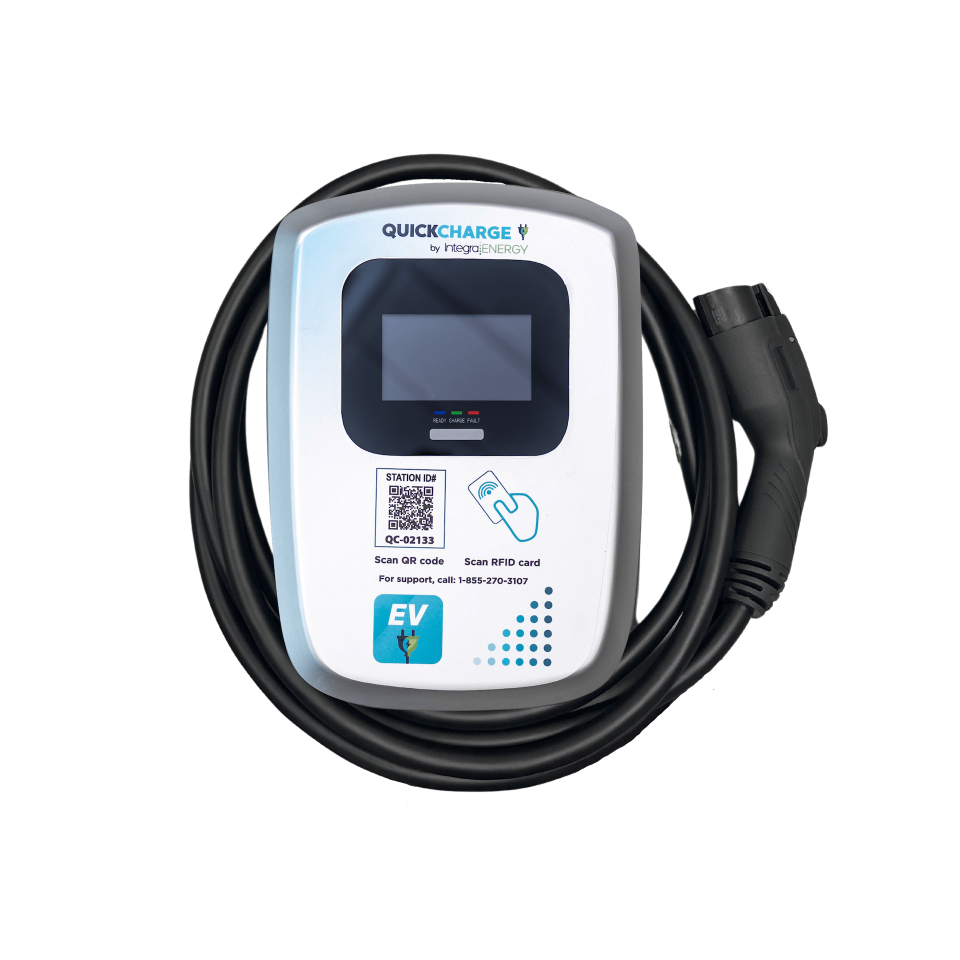

IEV Level 2 – 80A Series

Fast, smart, and flexible — the IEV-80SEL-18F-5C-4G delivers powerful 80-amp Level 2 EV charging with WiFi, 4G, and built-in safety and monitoring features. A future-ready solution for home or commercial use.

  • Power Output

    Up to 80A / 19.2 kW

  • Connectivity

    WiFi, 4G, Ethernet

  • Plug & Cable

    SAE J1772, 18 ft cable

Get a Quote

What is a Level 2 Charger?

A Level 2 charger is the most common type of EV charger for everyday use. It charges faster than a standard wall outlet and is ideal for home, work, and public locations where vehicles are parked for longer periods.

Everyday EV Charging Made Easy

integraenergy charger

No Costly Upgrades

Delivers consistent performance with up to 48 amps of power—without requiring expensive upgrades to property infrastructure.

Great for Daily Parking

Ideal for workplaces, residences, and overnight charging—where drivers spend hours, not minutes.

Ready to Grow

Designed for easy installation and future expansion.

General Specifications
Model Number IEV-80SEL-18F-5C-4G
Plug Type SAE J1772 Type 1
Number of Ports Single
Charging Cable Length 18 ft
Display 5-inch LCD
Electrical & Performance
Input Current80/48A
Input Voltage200-240V / 60Hz
Max Output Power80A / 19.2 kW
HardwiredYes
Smart Features
Network ConnectivityEthernet + 4G + WiFi
RFID + QR CodeIncluded
ISO 15118 CompliantYes / Optional
Local Load ManagementOptional
OTA TechnologyIncluded
OCPP 2.0Yes
CTEPYes
Mechanical Specifications
Dimensions13.8 x 9.8 x 5.1 in
Weight19.8 lbs
IP ProtectionIP65 (charger), IP54 (cable), NEMA 3
Tamper ResistanceIK08 (except LCD & RFID)
Operating Temp-22°F to 122°F
HumidityMax 95%
Accessories & Pedestal Options
Pedestal Model IEV-EVSTAND6X6MOD (Standard Pedestal)
IEV-EVSTAND6X6MOD-CR (Pedestal with Cable Retractor)
Pedestal Heights 54" Standard or 78" with Retractor
Material All-Aluminum Body, Powder-Coated Finish
Installation Simple Bolt Pattern for Fast Setup
Cable Management Compact Retractor with 10 lb Consistent Tension
Design Lightweight, Rust-Resistant, All-Weather Protection
